Gigamon | The smart route to visibility

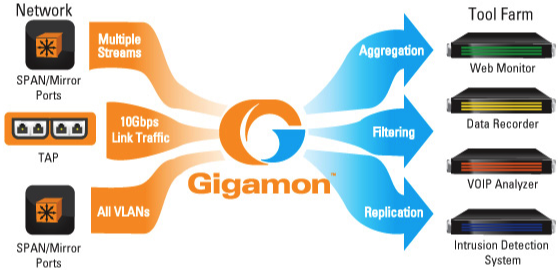

Gigamon® provides intelligent Traffic Visibility Networking solutions for enterprises, data centers and service providers around the globe. Our technology empowers infrastructure architects, managers and operators with unmatched visibility into the traffic traversing both physical and virtual networks without affecting the performance or stability of the production environment. Through patented technologies, the Gigamon GigaVUE® portfolio of high availability and high density products intelligently delivers the appropriate network traffic to security, monitoring or management systems. With over seven years’ experience designing and building intelligent traffic visibility products in the US, Gigamon serves the vertical market leaders of the Fortune 1000 and has an install base spanning 40 countries.

Benefits of the Gigamon Visibility Fabric Architecture

Pervasive visibility and control

Scalable, high-throughput capacity

Improved network efficiency and economy

Enhanced network reliability

Ease of deployment and use

Rapid response to dynamic change

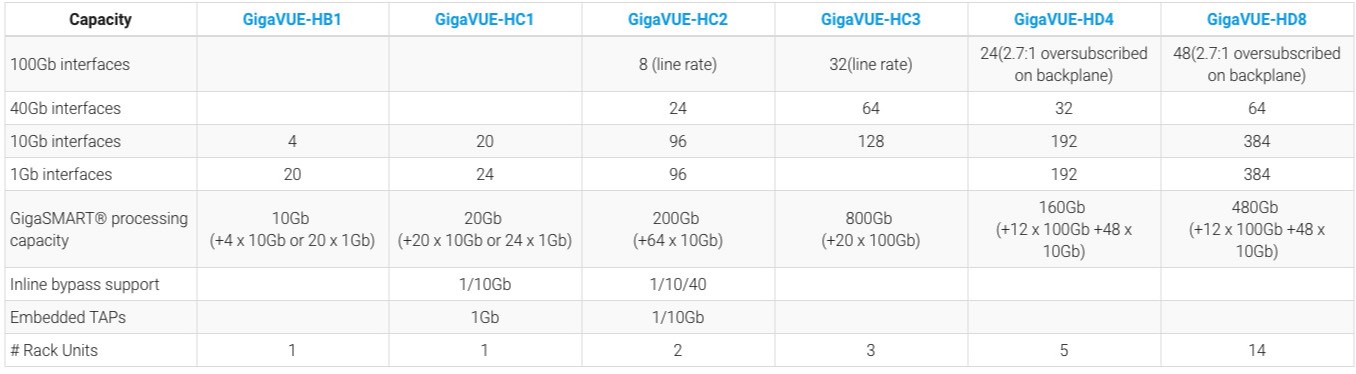

Compare Appliances

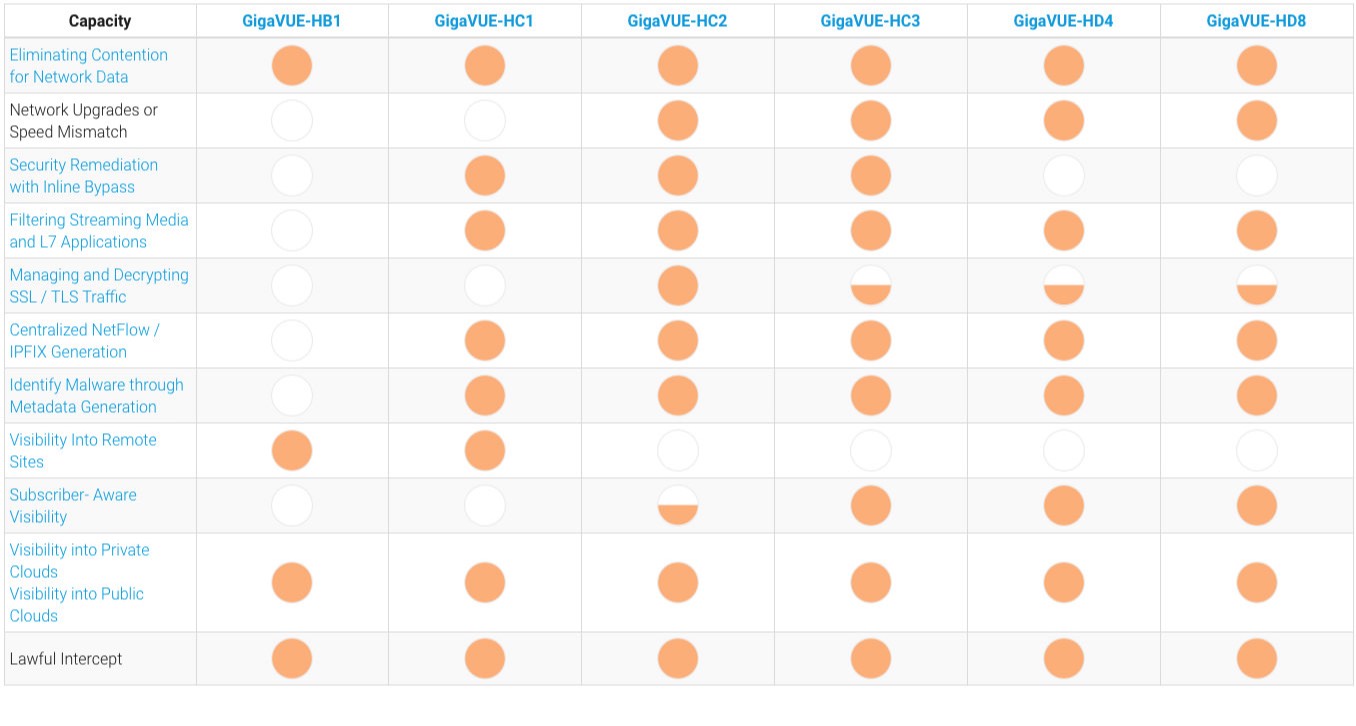

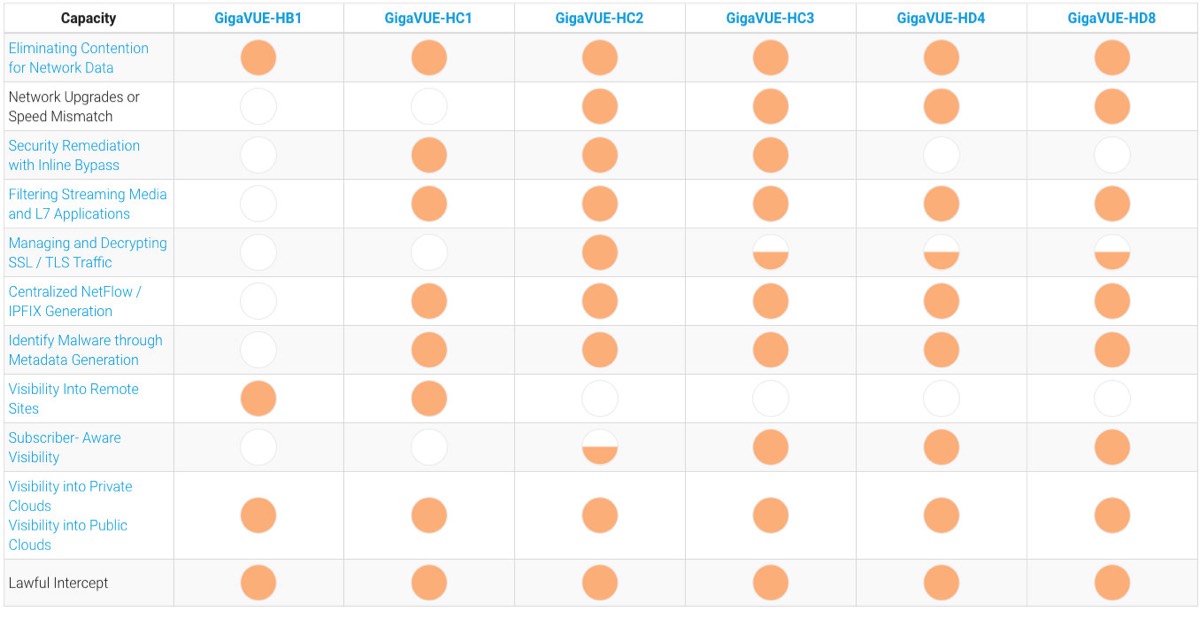

Compare Use Cases

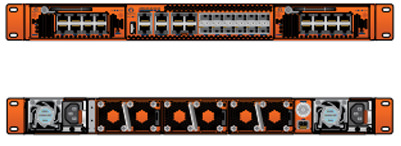

GigaVUE-HC1

The base chassis has twelve (12) SFP/SFP+ cages supporting 1Gb and 10Gb modules plus four (4) fixed RJ-45 ports for 10/100/1000Mb. Expandability is provided by two module bays. The copper tap/bypass module has eight (8) RJ-45 ports to monitor four (4) 10/100/1000Mb links. The modules have fail-to-wire protection and support both out-of-band tapping and inline bypass protection.

Optional GigaSMART® features provide traffic intelligence and visibility to remote sites. Generating metadata and NetFlow/IPFIX enhances security analytics without sending full packet streams across a WAN. When full packet data is required, traffic flows can be tunneled back to centralized tools for deeper inspection. Efficiency is further improved by dropping duplicate packets, removing unwanted headers, and slicing packets down to a more manageable size.

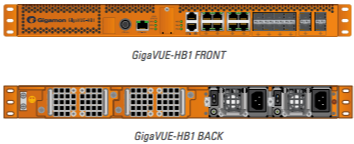

GigaVUE-HB1

Optional License Features

Combo, includes Slice, Masking, & Source Port features
De-Duplication feature
Header Stripping feature
Tunneling feature
Adaptive Packet Filtering feature
NetFlow Generation feature

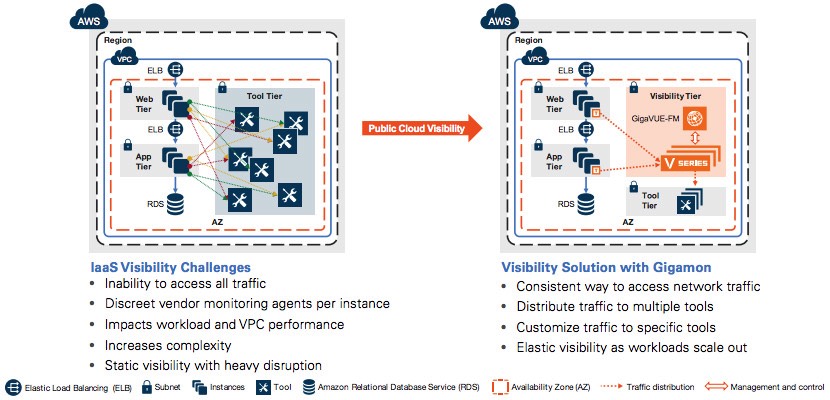

Gigamon Visibility Platform for AWS

The Gigamon Visibility Platform for AWS is the industry’s first pervasive Visibility Platform that provides consistent visibility into data in motion across the entire enterprise: on-premise, remote sites, public, private and hybrid clouds.
